DS-1LN6UTC0

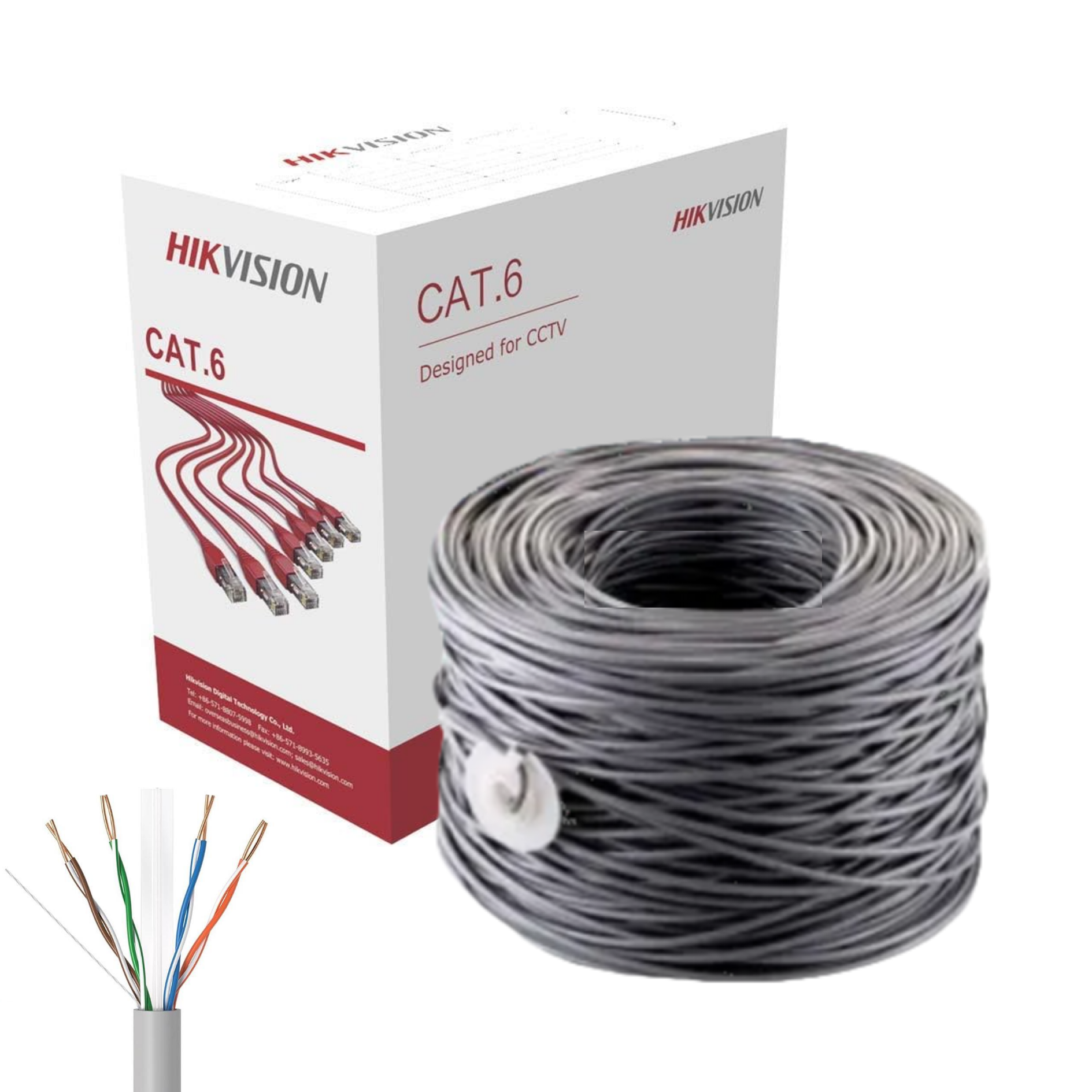

305 m CAT6 network cable

–

Category: Cat 6

Structure: U/UTP

Fire Resistance: CPR Fca

Usage Scenario: Indoor

Conductor Material: Solid-Bare Copper

Conductor Diameter: 0.515 ±0.005 mm 24AWG

Insulation Diameter: 0.93±0.05mm

Sheath Material: PVC

Sheath Color: Grey

–

Stable electrical performance, compliant with ANSI/TIA-568.2-D,IEC61156,ISO/IEC11801.

Sheath with strong mechanical properties, and high tensile and compressive strength, reducing damage during the project.

Excellent performance in the Fluke 90-meter permanent link test while working continuously at 50°C high temperature.

Excellent performance in the Fluke 100-meter channel test while being continuously loaded with 57 V/1 A DC power(PoE).

Solid-Bare Copper conductor with less resistance, and better electrical properties and transmission performance.

Compliant with RoHS 2.0.
